Lets have a look at the Bidor Blacksmith!

I’m sure many of you have heard of the Bidor Blacksmith by now. There has been many blog writings on them and their blades are sold worldwide. From a small family shack, they are now one of the leading parang / agricultural tools in Malaysia. Their expertise lies in their heat treatment – their blades are  easily sharpened and able to hold an edge for a long time.

Recently on our last trip, we took some pictures of the workshop and this post will be pretty picture heavy .

Here, they earn their living from making agricultural tools – from sickles to kitchen knives , and most things in between. Hence to live of this , their setup is pretty much bigger and is a stark contrast with the traditional makers. Here you can see half a dozen power hammers and tons of steel stock.

This post on the Bidor Blacksmith will be less wordy and will be mostly pictures. Pictures are worth a thousand words, therefore I won’t bore you much with lengthy explanations.

bidor blacksmith 022Signboards showing you the way to the factory

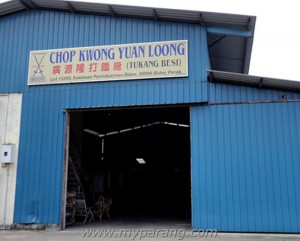

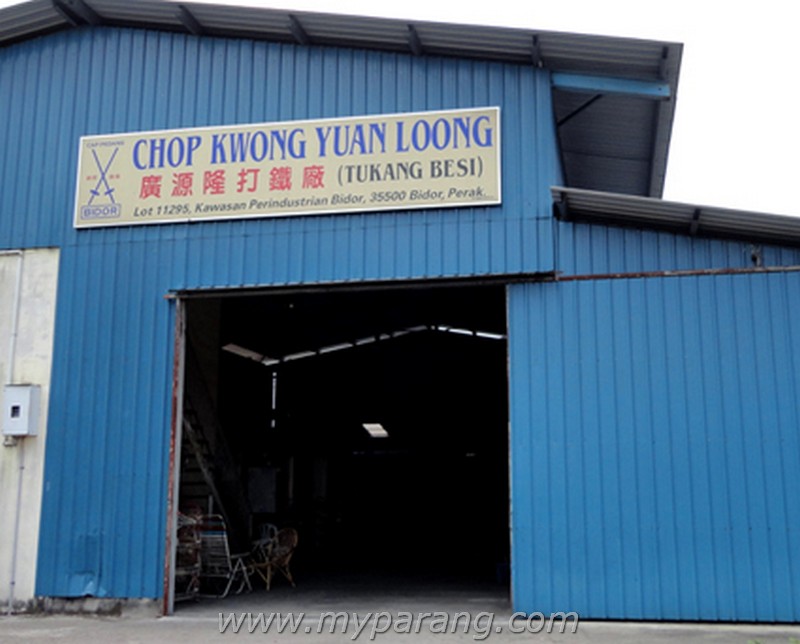

bidor blacksmith 001The factory main entrance

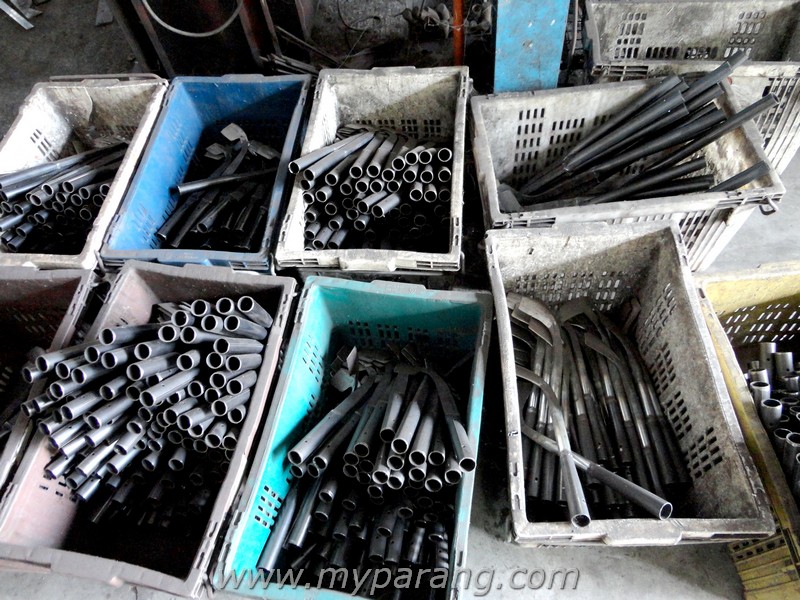

bidor blacksmith 002Some of the various agricultural tools you can find made there.

Late 2013, they purchased two gas forges, as you can see in the picture below. Apparently they have been having trouble sourcing for the right type of coal, and the gas forge is a very much welcome upgrade. Gas is much easier to obtain and more consistent in supply . They however, do not use it to heat treat their products. This is because the gas forge heats up the whole blade, and not only the cutting edge. This is true, since you only need to harden the edge only.

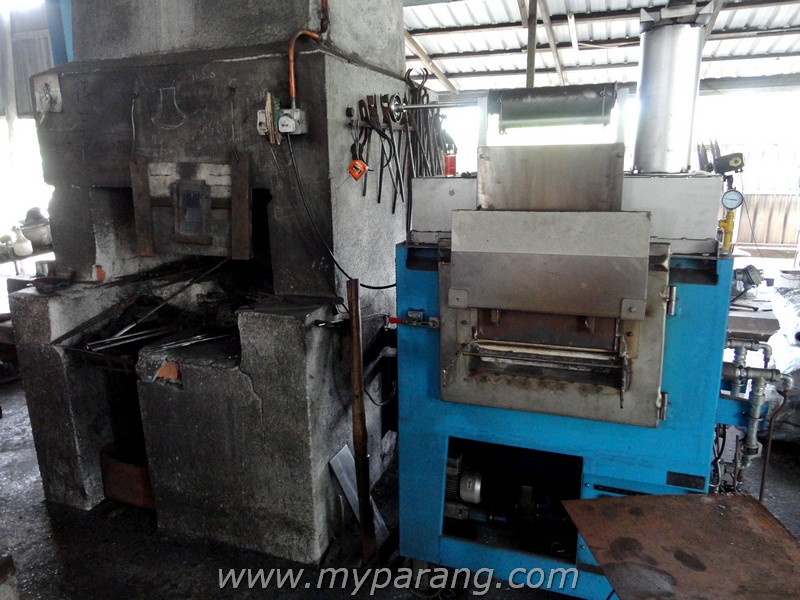

bidor blacksmith 004Brand new gas forge next to the charcoal forge

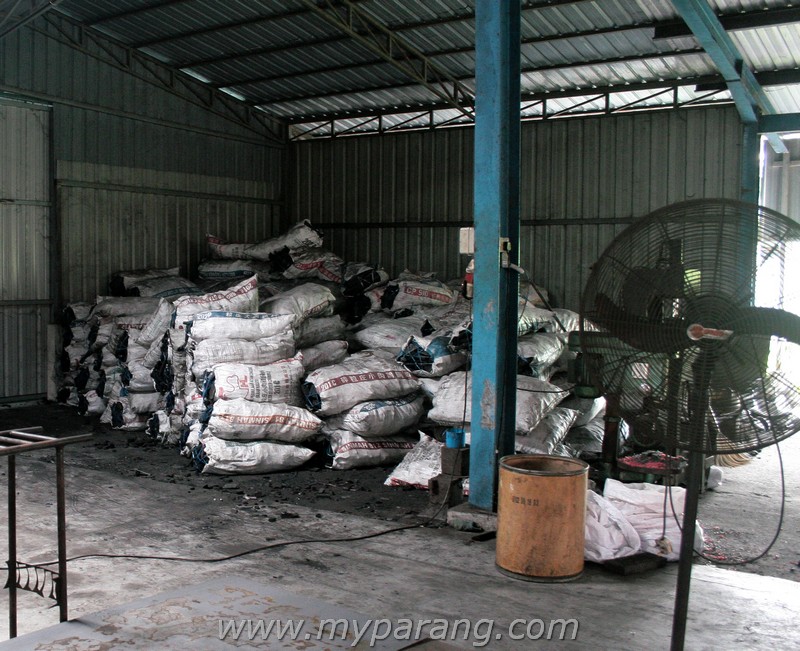

bidor blacksmith 018Their stockpile of charcoal. Ah Pin once told me if I can source this particular type of charcoal, he’d buy any amount I can supply him.

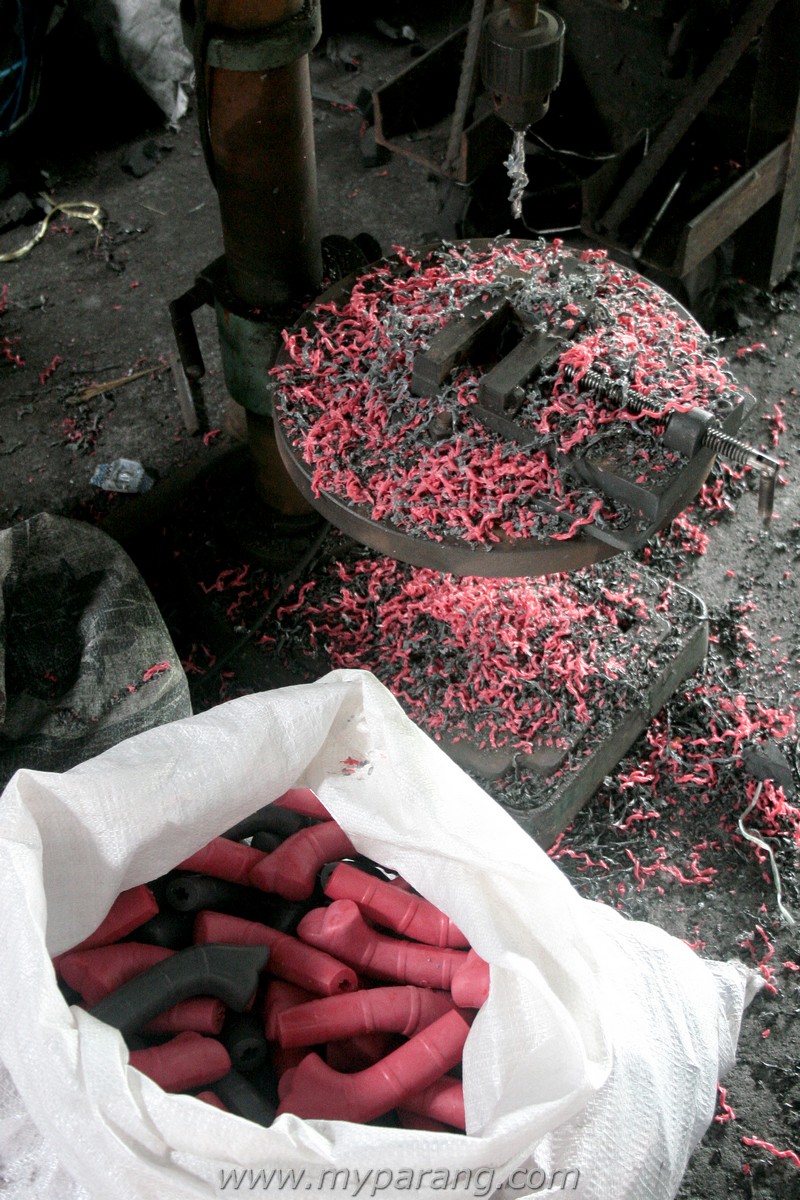

bidor blacksmith 019The plastic handles everyone seems to hate. Waxy, Slippery , obnoxious colours , but hey, it’s practical and easily seen on the jungle floor!

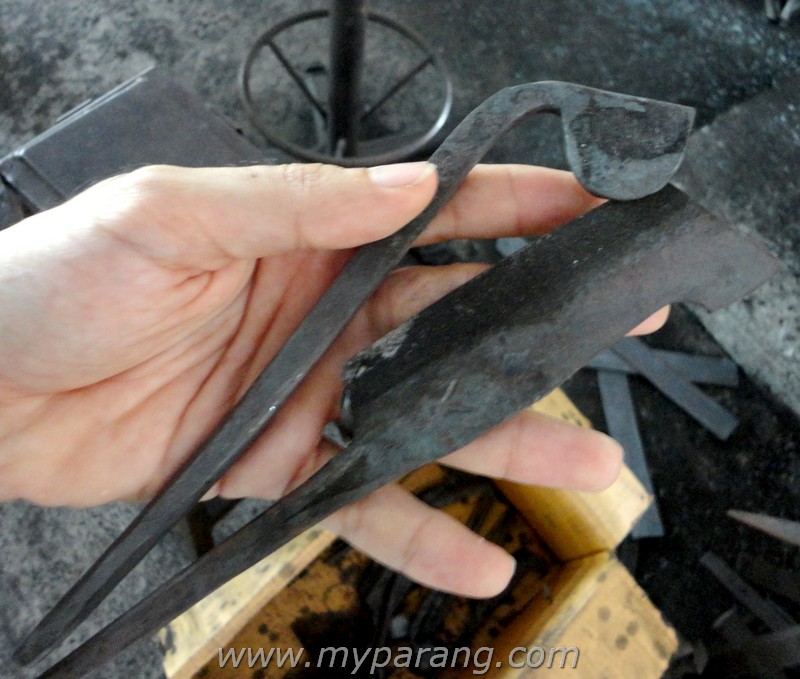

bidor blacksmith 005One of the tools they make – a betel nut cutter. You don’t see them much anymore.

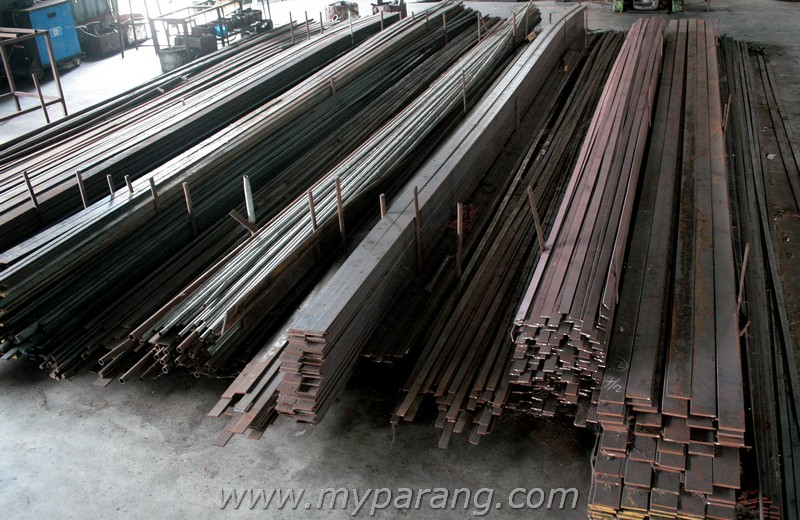

bidor blacksmith 016The steel stock they use come directly from the steel mill, and not from the recyclers. Recycled steel ( ie. leaf springs ) differ in composition and will result differently after the heat treat.

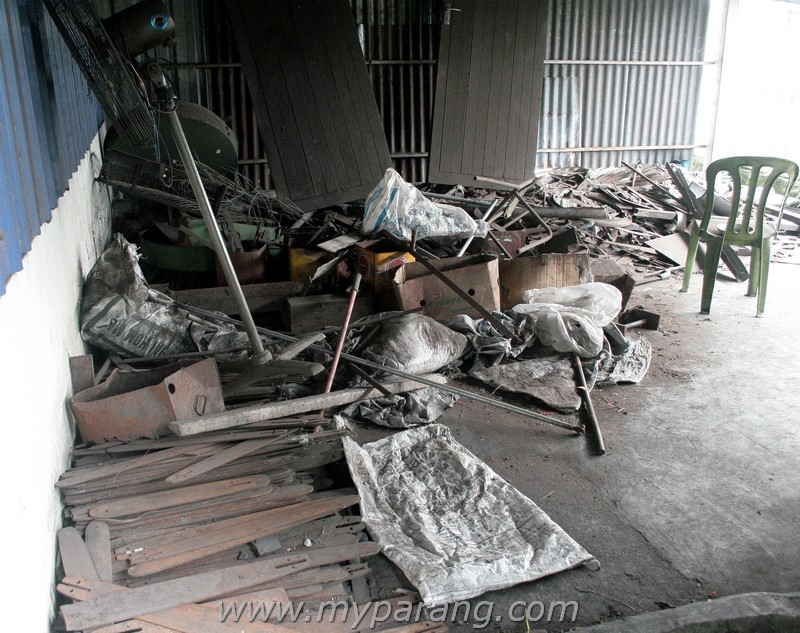

bidor blacksmith 020Here is a stockpile of scrap steel which they used back then. There are various files , chainsaw bar guides, recycled leaf springs etc , which are not used anymore.

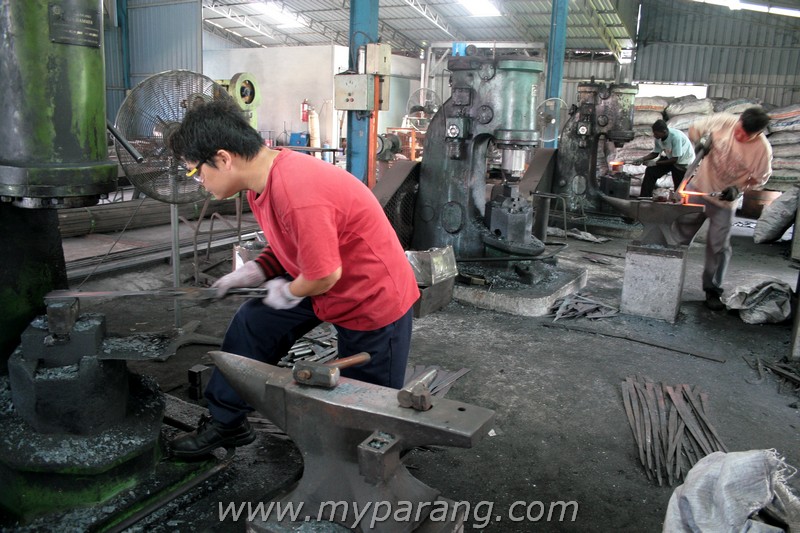

bidor blacksmith 026Here workers pound the hot and soft steel into a shape .

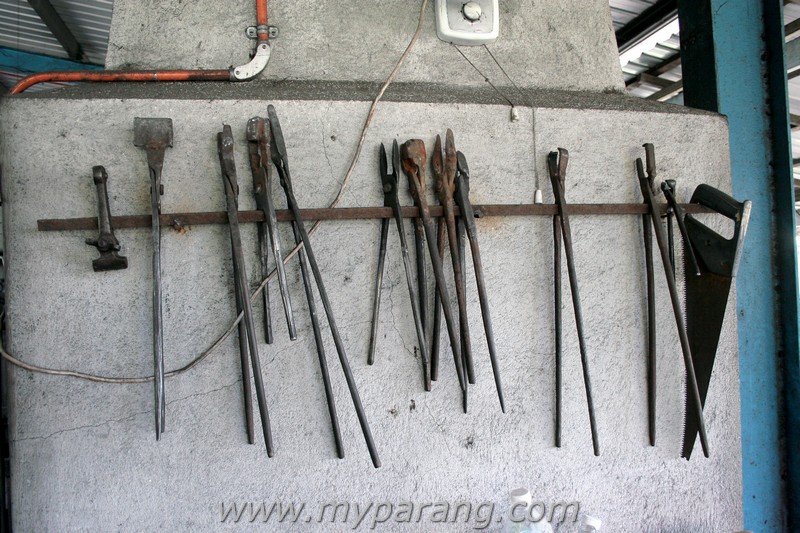

bidor blacksmith 025Some of the blacksmith’s tools hanging . Some are made by themselves.

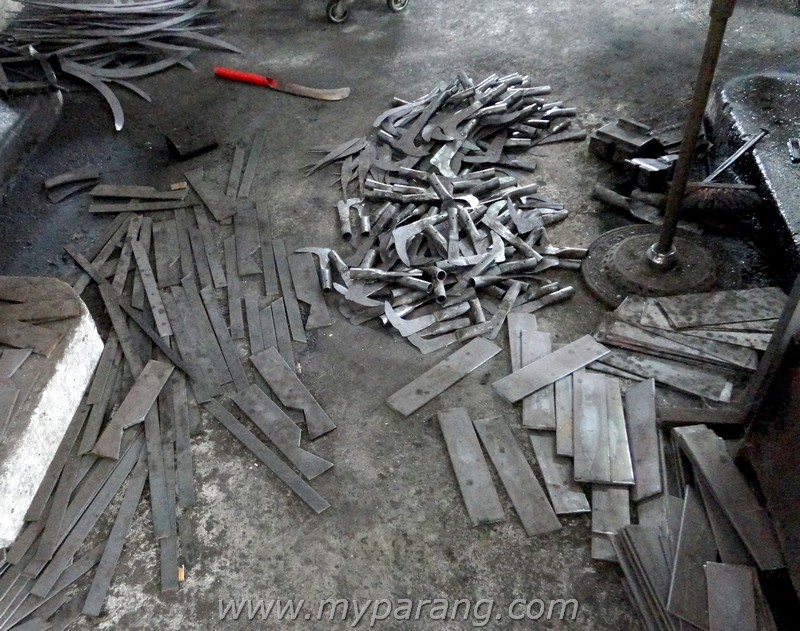

bidor blacksmith 003Some of the semi finished products left to cool on the factory floor

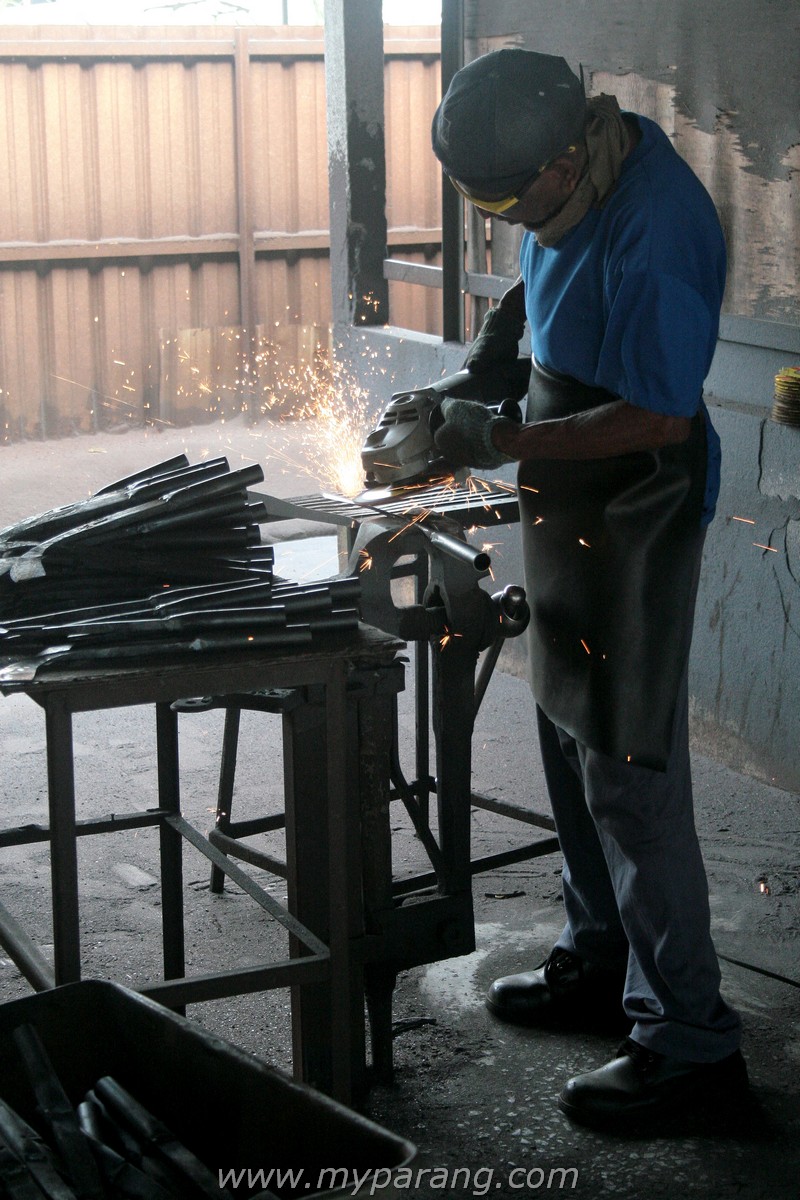

bidor blacksmith 017A worker rough grinds the worked steel into its final shape

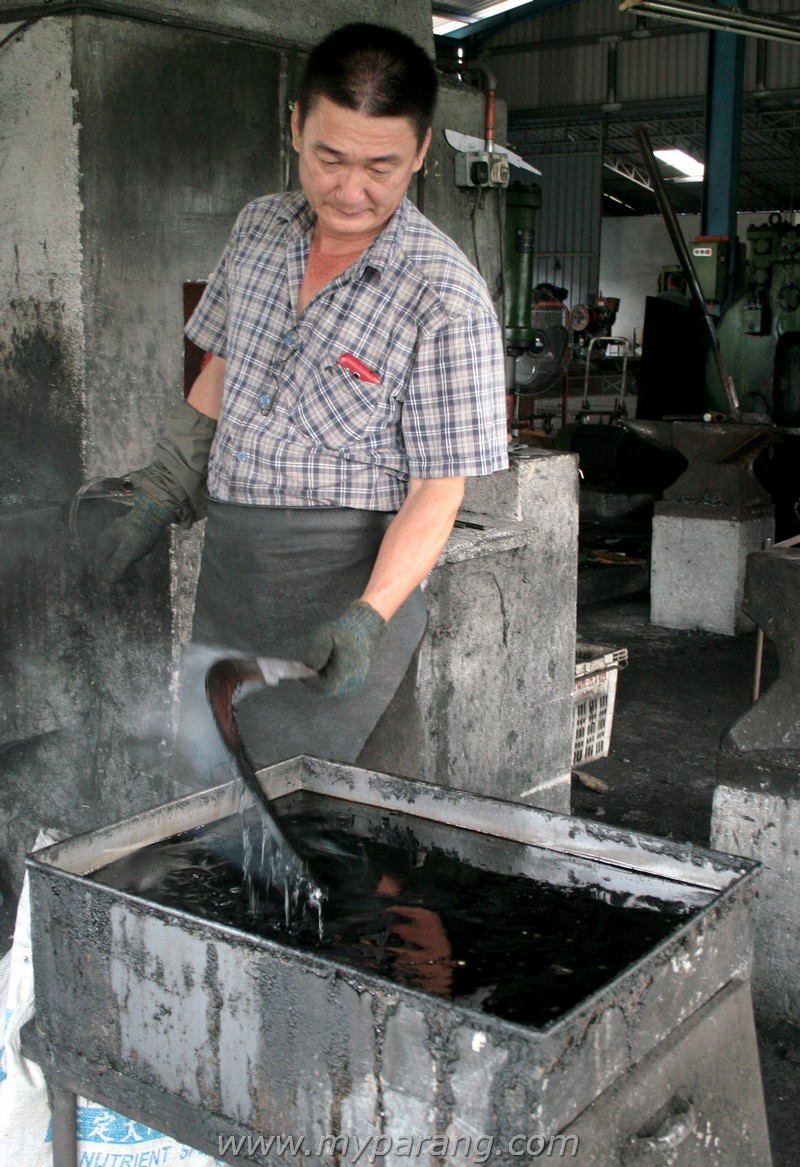

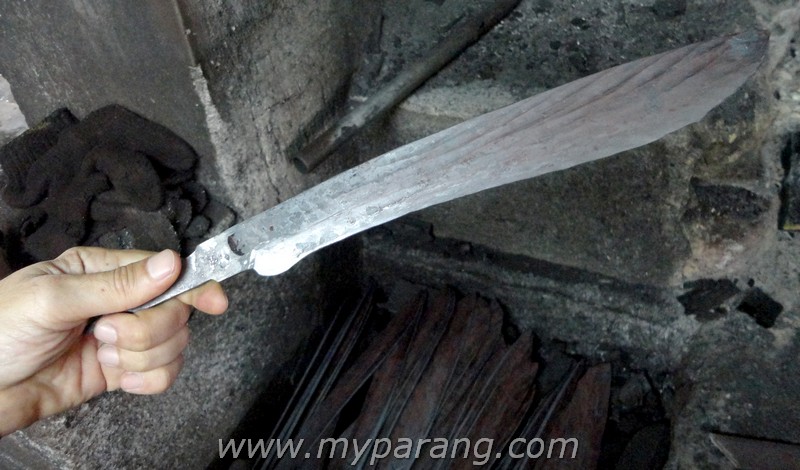

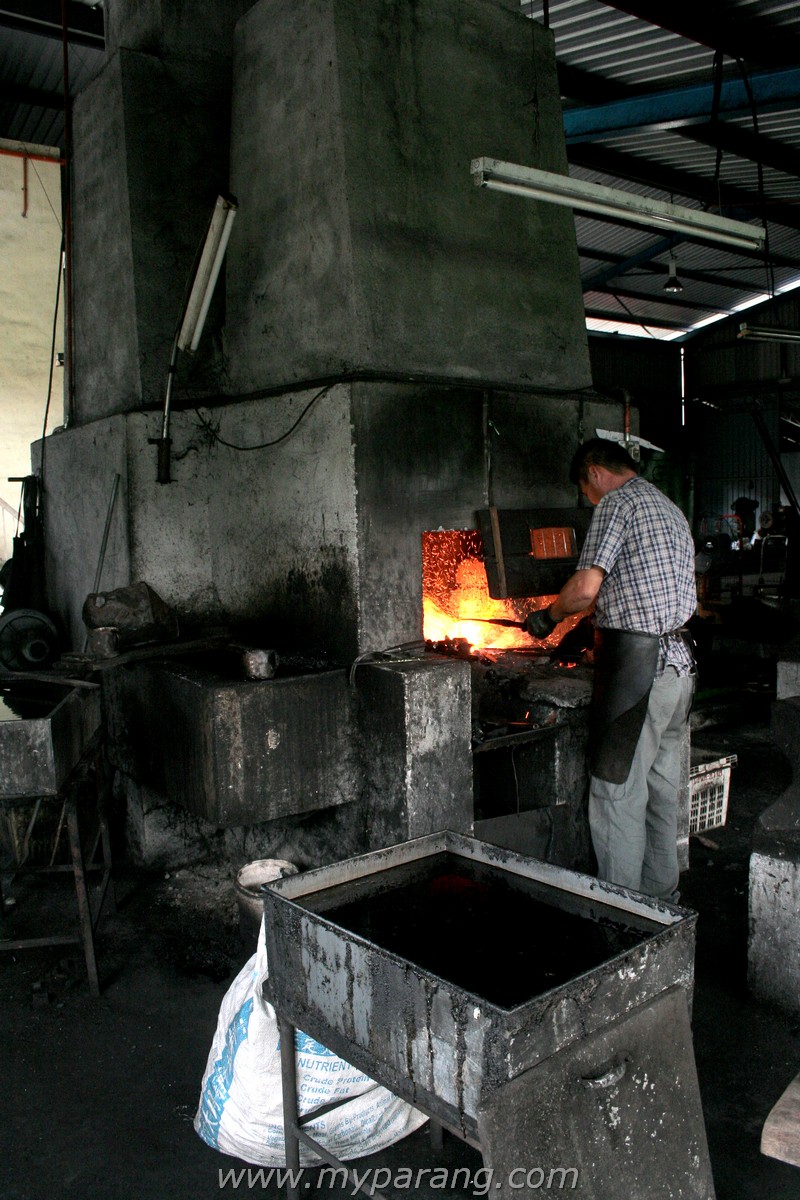

bidor blacksmith 007A Parang blank ready to be sent for heat treat bidor blacksmith 010Ah Ming firing up the forge to heat treat some blades. Note that he uses the charcoal forge and not the gas. bidor blacksmith 011Heat treat done in Oil .

bidor blacksmith 012Heat Treat done with water

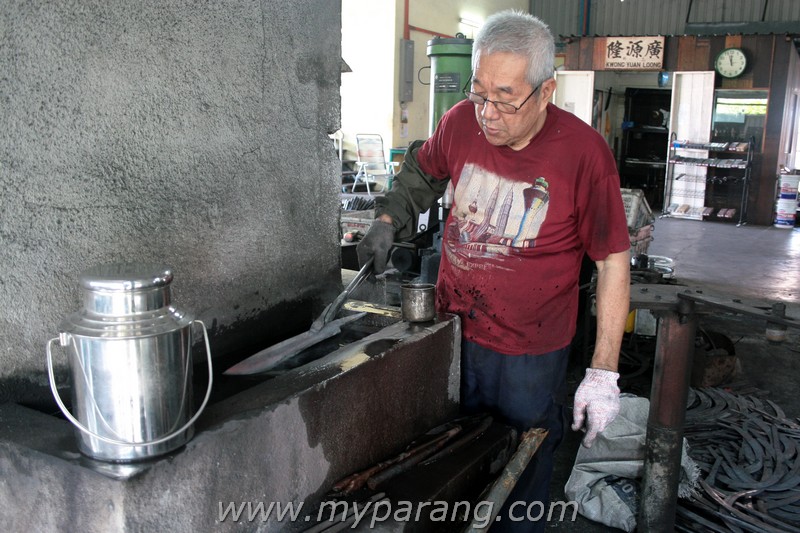

bidor blacksmith 027Mr. Pin showing how it’s done – hardening a parang blade in water.

I asked Ah Ming when he was demonstrating the heat treatment if there was any difference in using water or oil. He said no, but he mentioned that the oil is much messier , as it leaves a greasy surface on the blades.

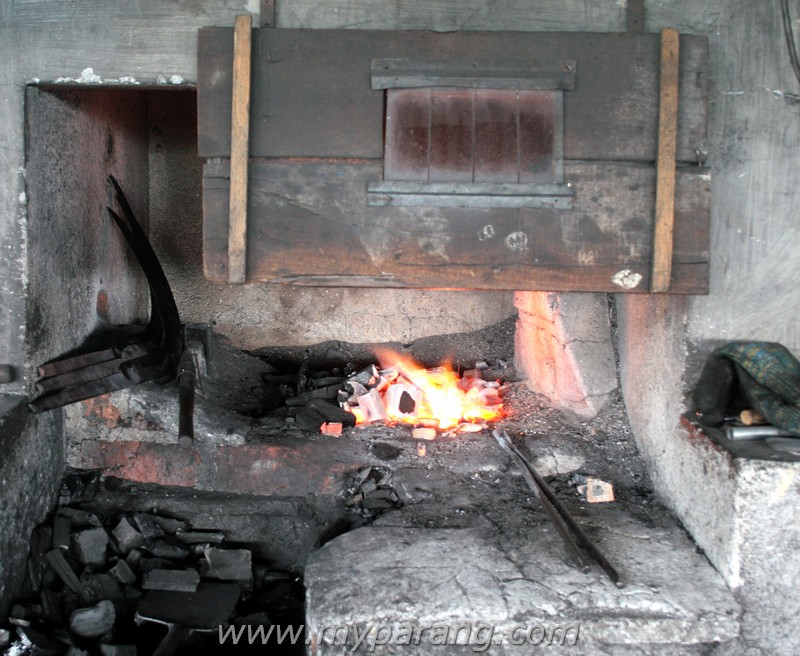

bidor blacksmith 013    After treat, the blades are left at the side of the forge to temper.

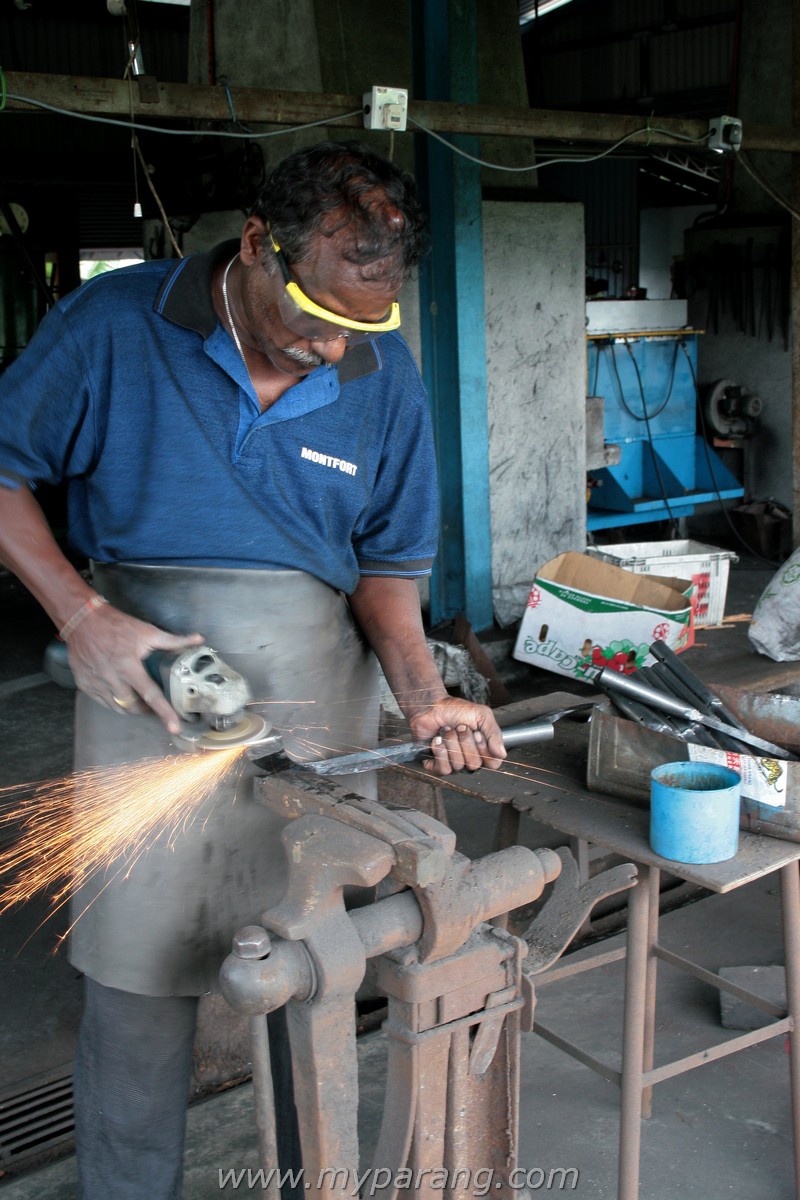

bidor blacksmith 008A worker sharpens the blanks – in this case a rubber tapping knife .

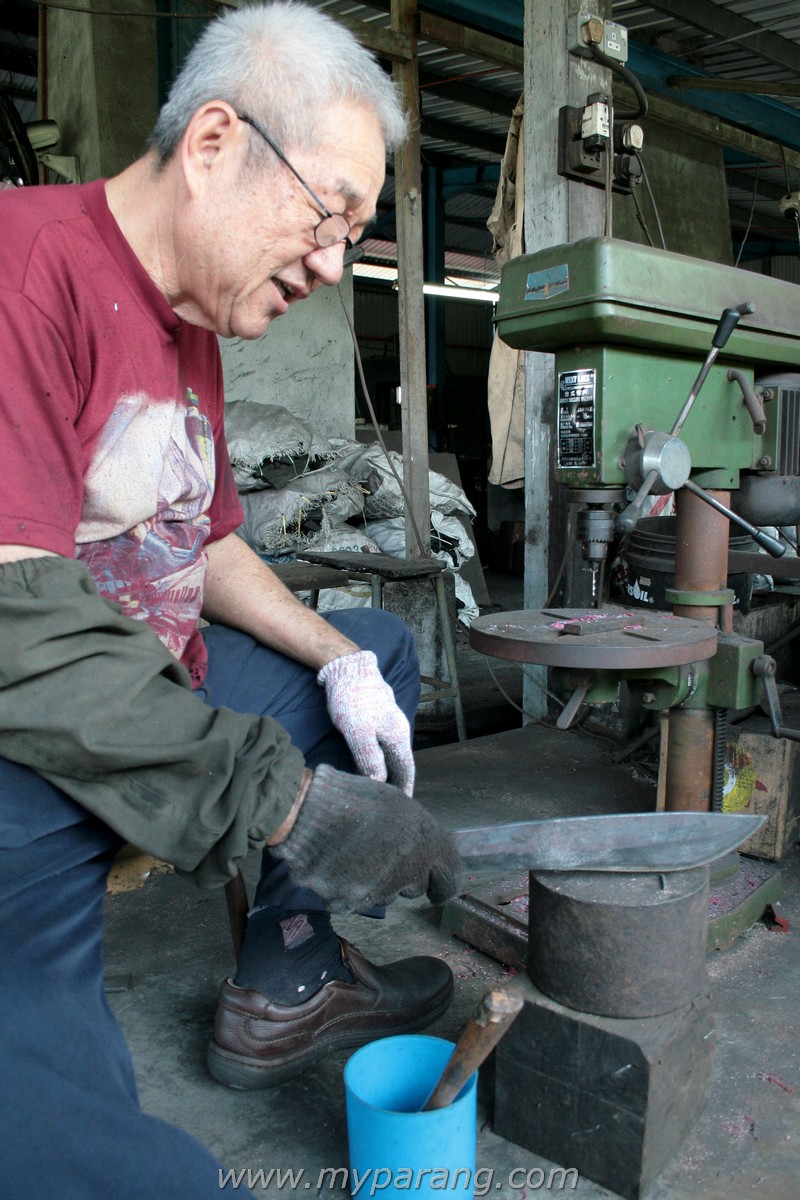

bidor blacksmith 028Here Mr. Pin showing the ability of his hand – hardened blades. Chopping steel pins with ease.

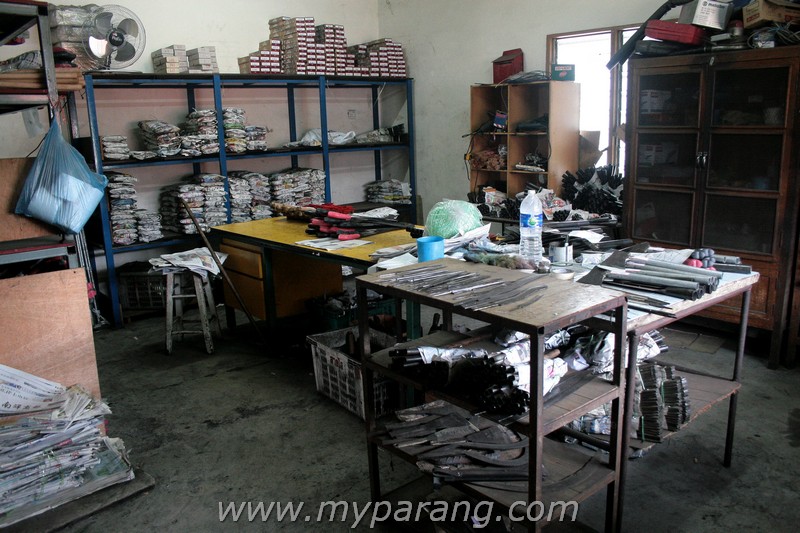

 bidor blacksmith 021 The packing center. Where orders are packed and kept for customers.

 The picture below shows the old address of the Bidor Blacksmith. Beware, as there are fakes make now days which uses this old address. When I spoke to Ah Ming, he mentioned that he knows about the fakes. He said they started when customers requested for Bidor made parangs , but the shops and their suppliers were too lazy to get them from Bidor itself, so they asked their  blacksmiths to copy to name and stamp it into their products. Really , anything can happen in Malaysia!  bidor blacksmith 015

edit 5/11/2014 : We have added a good video by the cool guys at ” Bush Channel ” on you tube.

14 thoughts on “Bidor Blacksmith”

  1. As mutch as I hate fakes the fact that Bidor products are copied is the unmistakable sign of good quality and far spread reputation. Many thanks to myparang.com for making this small but yet great company known internationally! Hats off mate!

    1. Hi Laszlo,

      Thank you for your comment. Yes, that is absolutely true, some say imitation is a form of flattery.

    1. Hi Lenny,
      I believe they are open Monday – Saturday . not sure the exact opening times, but probably 9 am – 5 pm . Hope that helps.

  2. great info, thanks. keep it up. maybe you can tell how to get a mirror finished with our local parang, step by step picture guide would be very much appreciated.

    1. Hi Hazman,

      That would be a good idea… We have not tried it before, but it’s a good thing to do and show. Some people like the mirror finish and it actually helps keeping rust away in our humid environment.

  3. salam bro!

    is it the factory open for public?? i mean we can visit & buy directly from there??

    thank you!

  4. Can I request for a custom made blade?
    I really want this blade so I could resume my project. And if so,can you tell me how much does it cost?

  5. What about a different handle. Don’t like plastic?? Ones I see online have wood handles. Are they authentic or fakes? How can I buy from the US – and know I am getting an authentic blade?? thanks.

    1. Hi ,

      Yes, MY Parang makes them with wooden handles. They feel a whole lot different ( much more comfortable ) and are stronger too. They are available in the states as well, and most parts of the world too. If they are under the MY Parang brand, you can be assured they are the authentic ones.

      The Fakes are more prevalent and common in Malaysia .
